3D Scan of NB MX-5/Miata Alternator
Interactive demonstration. Purchased files retain their original resolution.
- Category
- 3D Scans
$15.00
Checkout is charged in AUD. Shipping and applicable taxes calculated at checkout.

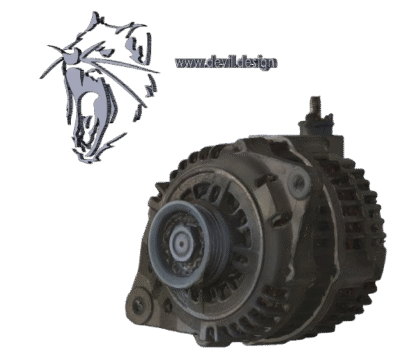

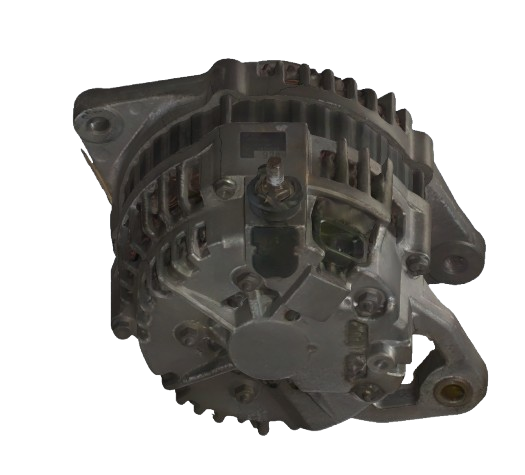

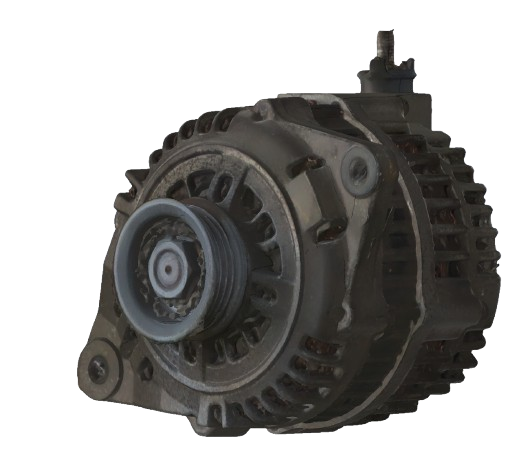

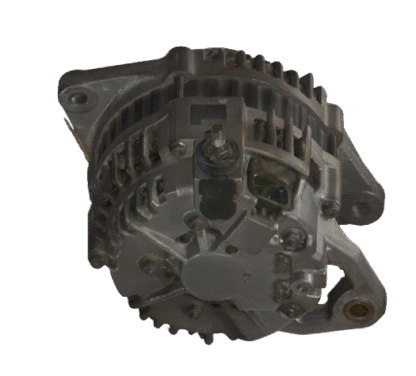

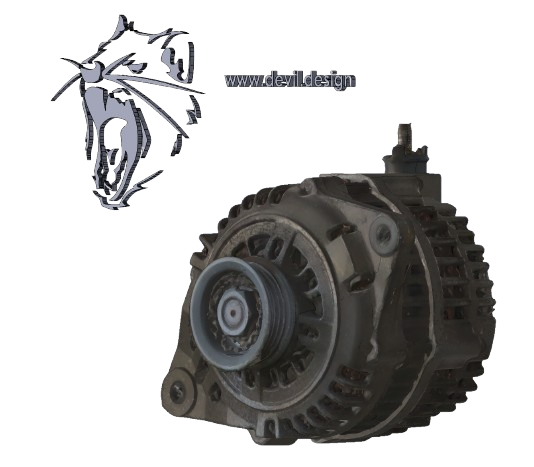

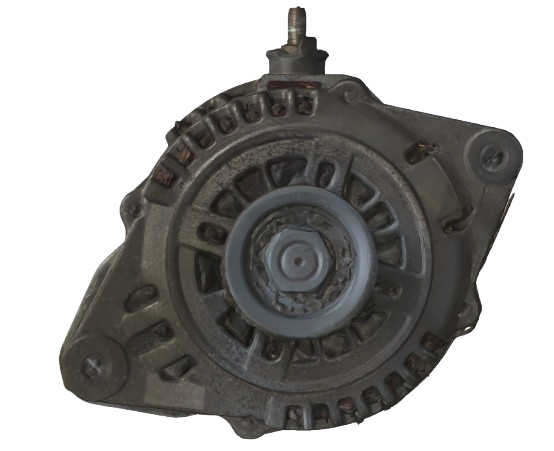

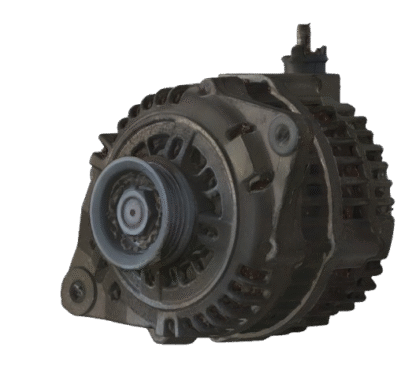

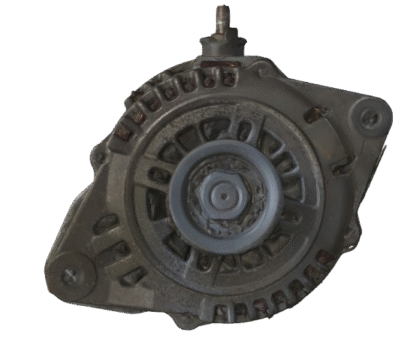

3D scan of BP4W-18-300C alternator from NB8A MX-5 Miata. Includes STL and textures for CAD, fitment checks, and custom designs.
SKU 0003-NA-10.11.B-3SA
Vehicle fitment
Report an error| Make | Model | Series / chassis | Engine | Year | LHD / RHD | OEM part numbers | Notes |
|---|---|---|---|---|---|---|---|
| Mazda | Miata | NB | BP | 1998–2001 | - | - | Digital reference scan of the named component; Verify the original part number and regional specification. Not a shipped physical part. NB8A specification. |
| Mazda | Miata | NB | BP | 2001–2004 | - | - | Digital reference scan of the named component; Verify the original part number and regional specification. Not a shipped physical part. NB8B specification. |
Overview
High-resolution 3D scan of the BP4W-18-300C alternator from the Australian-market NB8A Mazda MX-5/Miata. Compatible across NB8A/B/C chassis, this scan captures detailed geometry for use in CAD mockups, fitment verification, and custom component design.
This download includes both the STL file and associated texture files, offering enhanced visual and dimensional reference for advanced CAD and 3D modelling projects. Please note, the texture data may require specialised software for proper utilisation.
Download includes:
-
1x STL file of NB MX-5 Alternator (BP4W-18-300C)
-
Associated texture files
Ideal for:
-
Custom bracket and accessory mount design
-
CAD-based engine bay mockups
-
Fitment checks for alternator conversions
-
Reverse engineering applications
Note: This is a digital reference file only, intended for use alongside the physical part.
