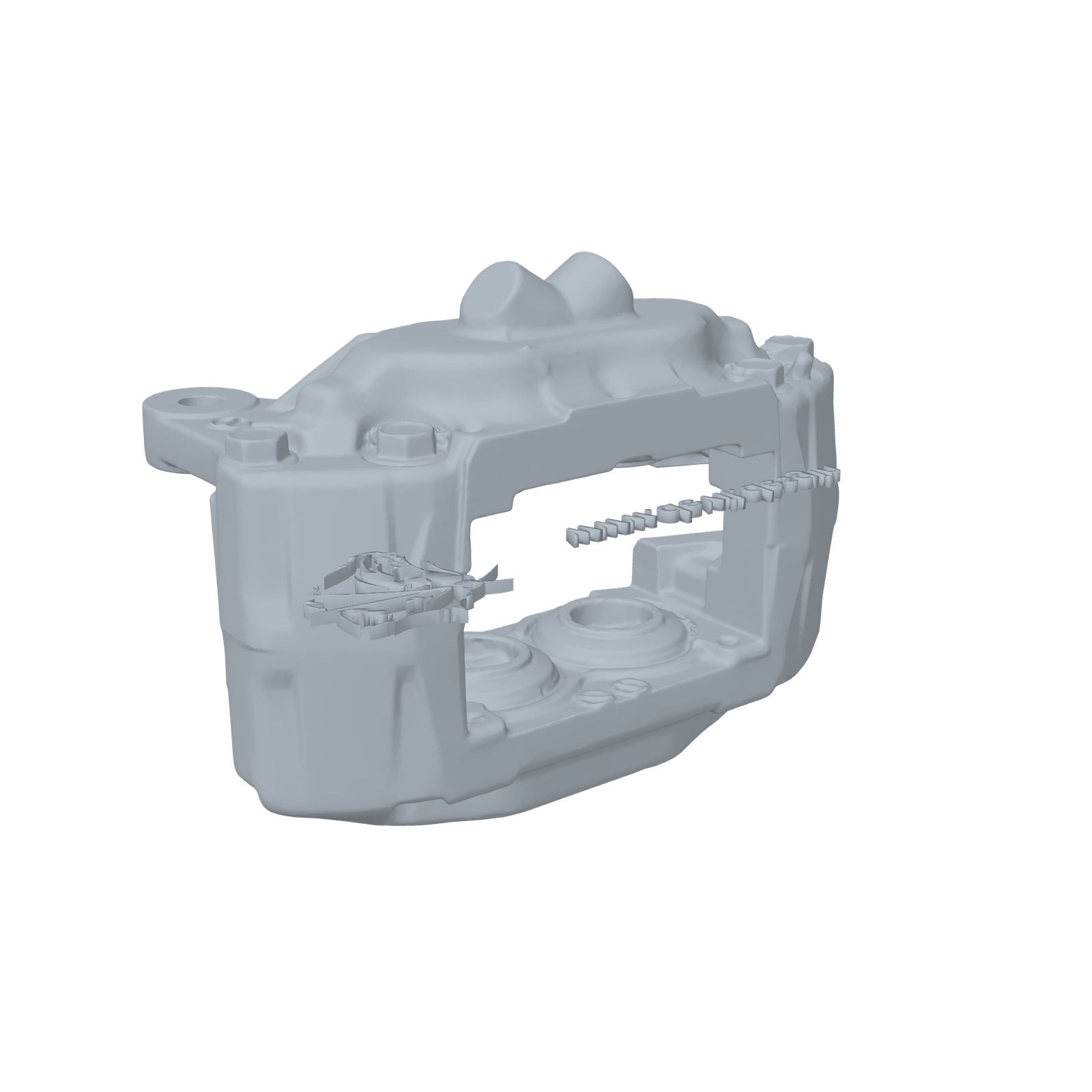

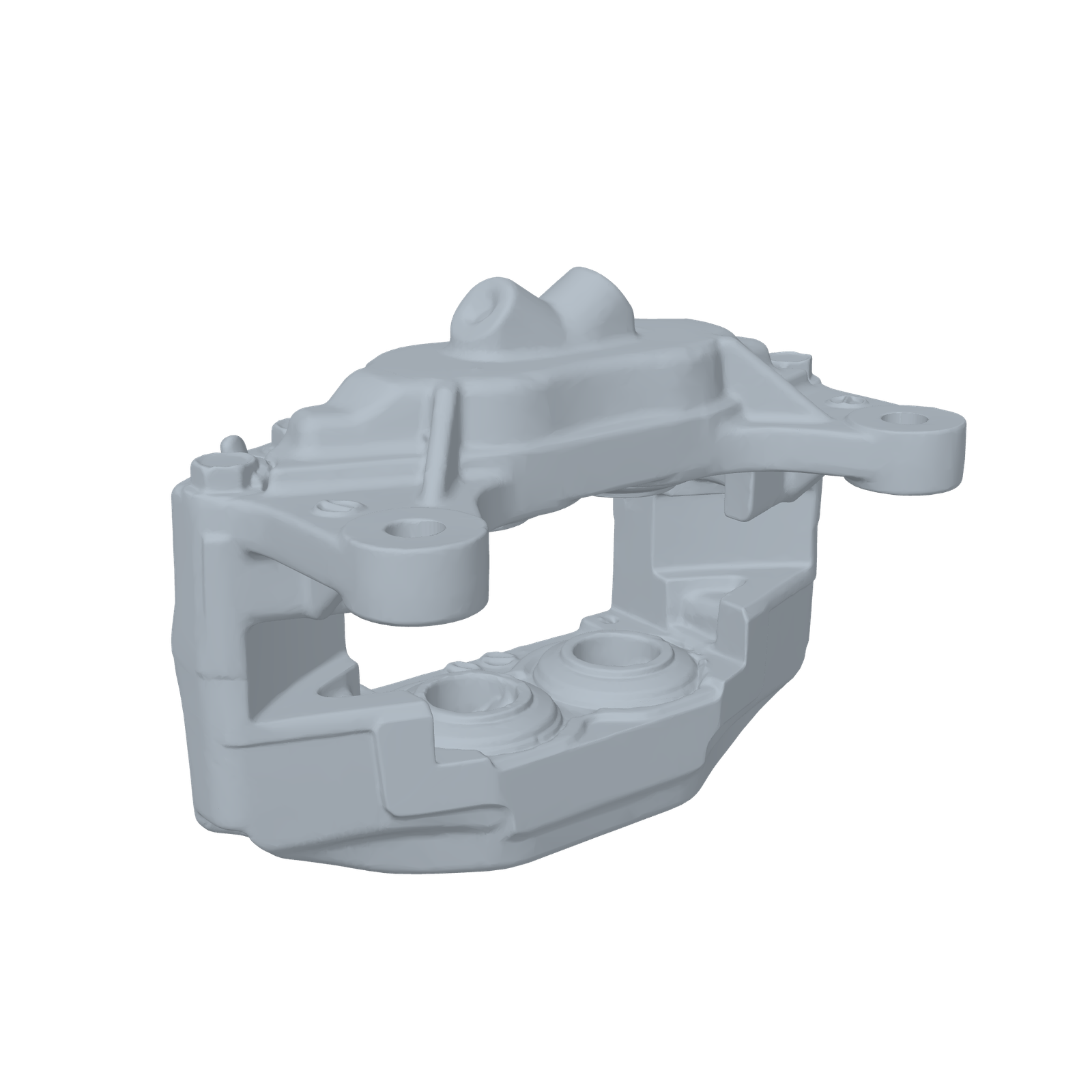

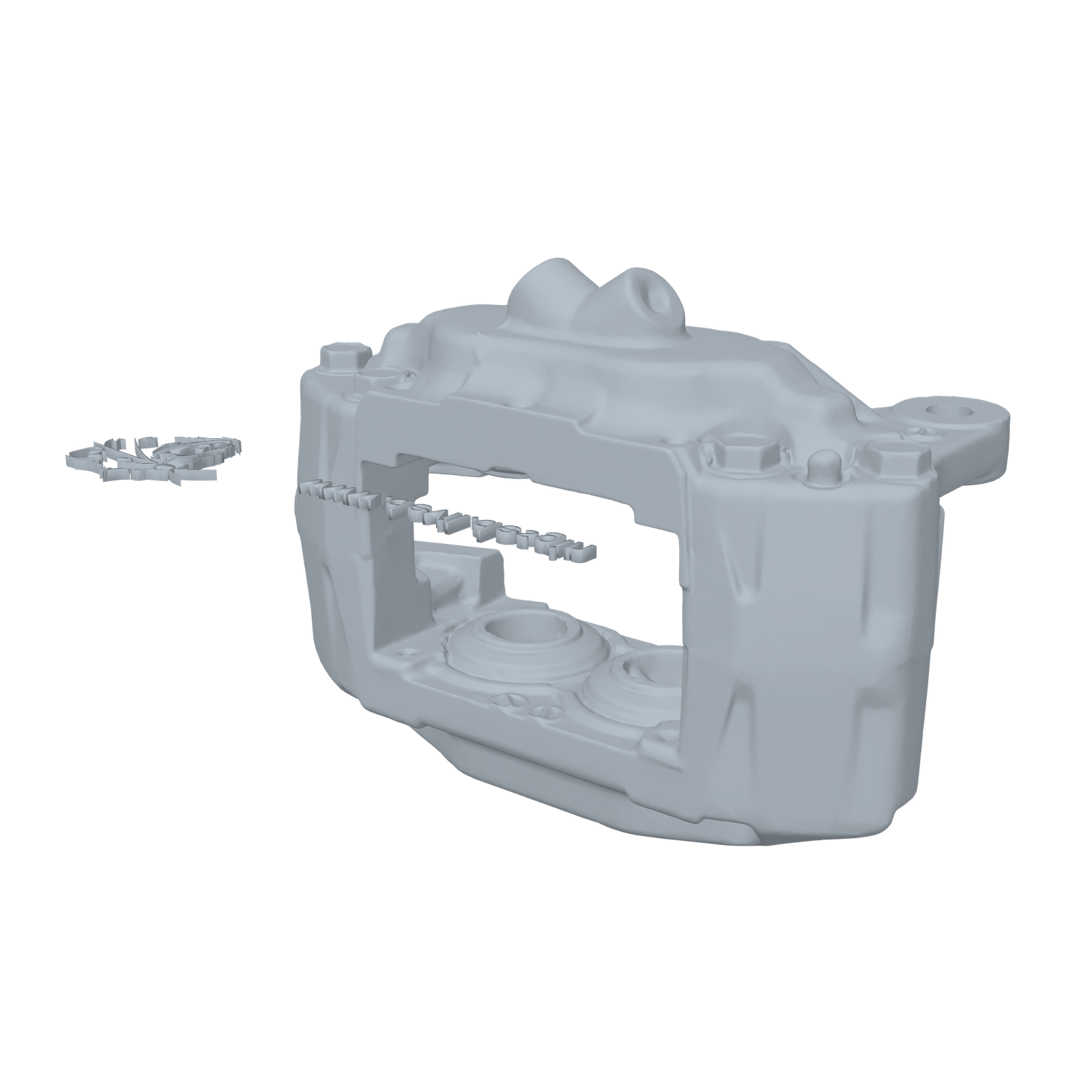

3D Scan of Front Brake Caliper for Mazda RX-7 FD3S
Interactive demonstration. Purchased files retain their original resolution.
- Category
- 3D Scans
$36.00
Checkout is charged in AUD. Shipping and applicable taxes calculated at checkout.
High-res STL 3D scan of Mazda RX-7 FD3S OEM front brake caliper, ideal for CAD, custom brackets, big brake kits, and reverse engineering.
SKU 0003-NA-1F.20-3SFC
Vehicle fitment
Report an error| Make | Model | Series / chassis | Engine | Year | LHD / RHD | OEM part numbers | Notes |
|---|---|---|---|---|---|---|---|
| Mazda | RX-7 | FD3S | 13B-REW | 1991–2002 | - | - | Digital scan of FD3S front caliper. Years identify FD generation, not interchangeability of every caliper variant. Use actual component for critical checks. |
Overview

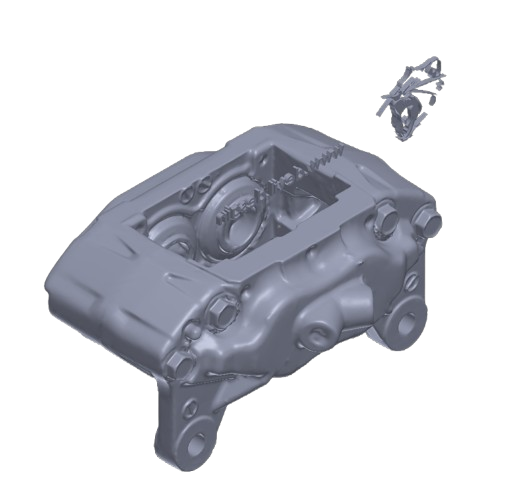

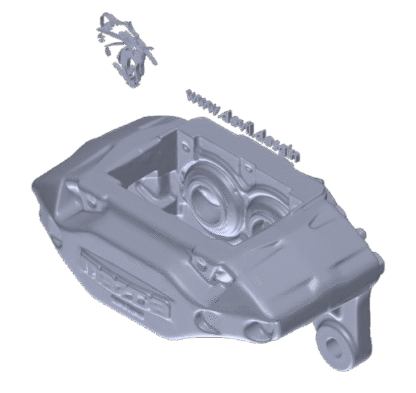

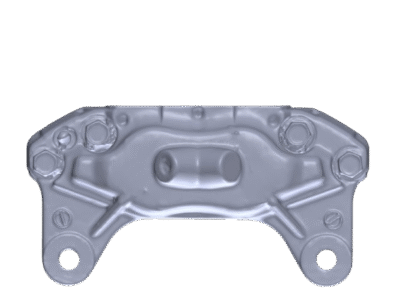

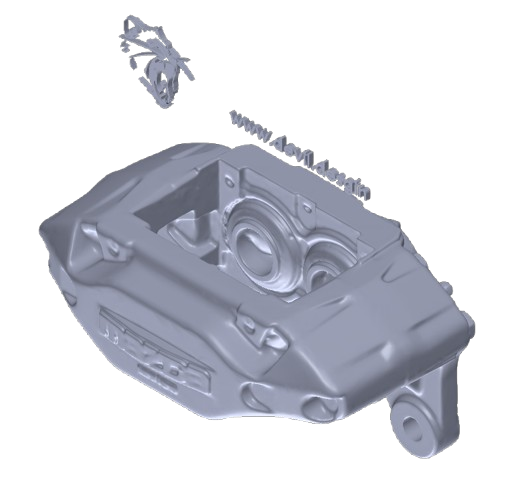

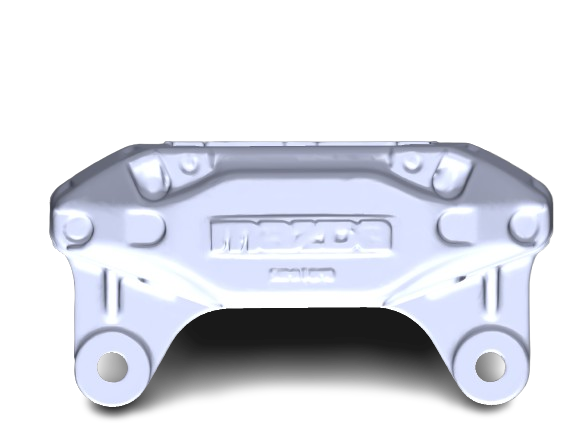

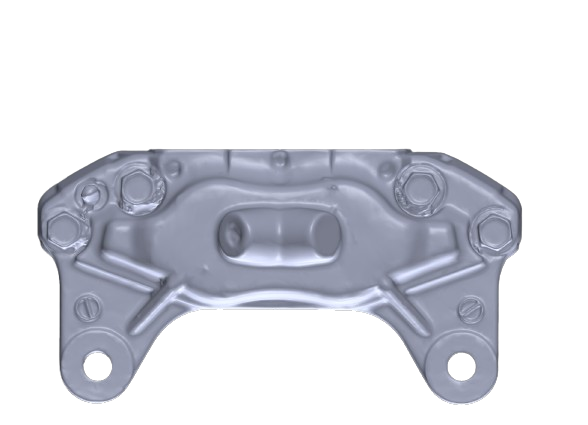

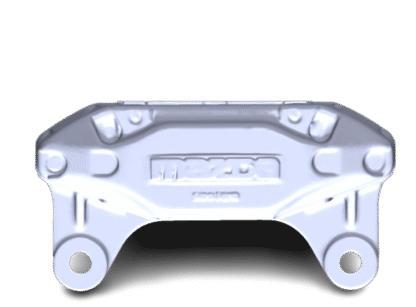

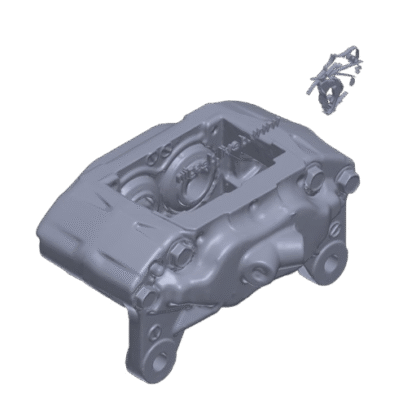

This high-resolution 3D scan precisely captures the geometry of the OEM front brake caliper from the Mazda RX-7 FD3S chassis. Provided as a downloadable STL file, it’s perfect for custom bracket design, CAD mockups, fitment verification, and reverse engineering.
Designed as a digital reference alongside the physical caliper, the scan delivers detailed geometry for engineering and design use. While accuracy is high, minor dimensional deviations may occur due to 3D scanning limitations.
Ideal applications include:
Custom brake conversion projects
CAD design and fitment validation
Big brake kit mockups and assemblies
Reverse engineering and prototyping
Note: This digital product is supplied as an STL file and requires CAD or 3D modelling software expertise.
Download includes:
1x STL file of Mazda RX-7 FD3S Front Brake Caliper 3D Scan
