Description

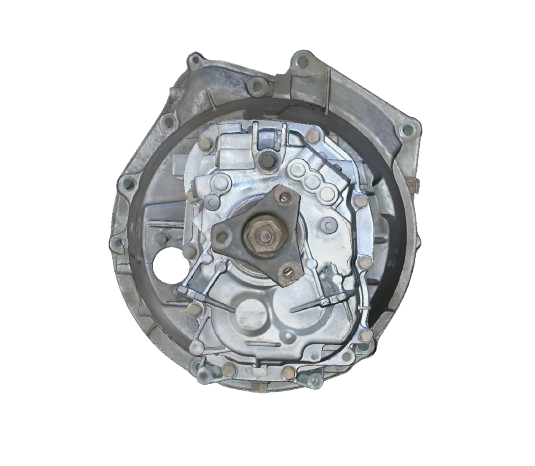

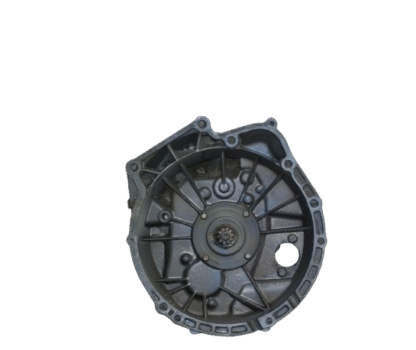

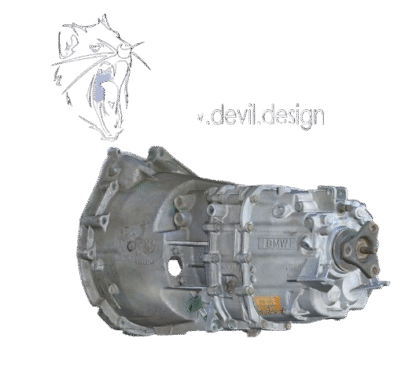

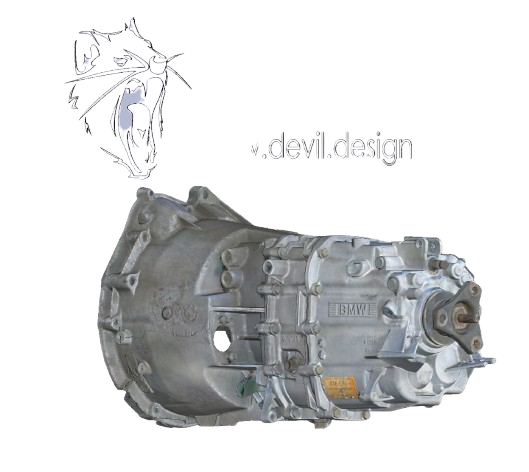

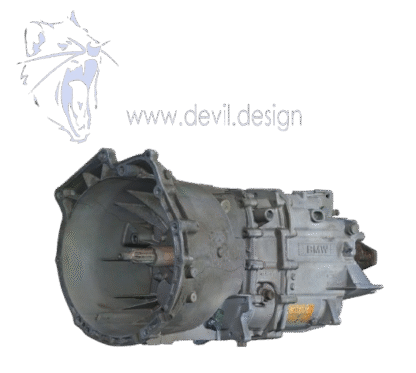

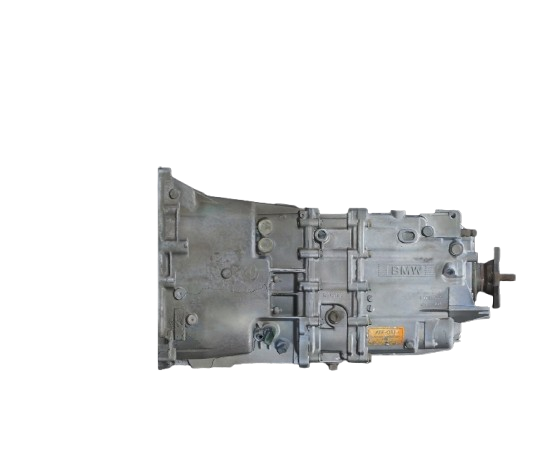

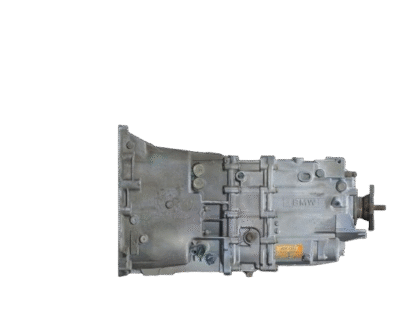

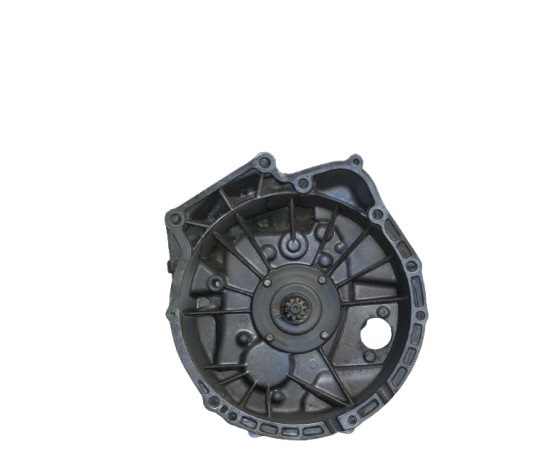

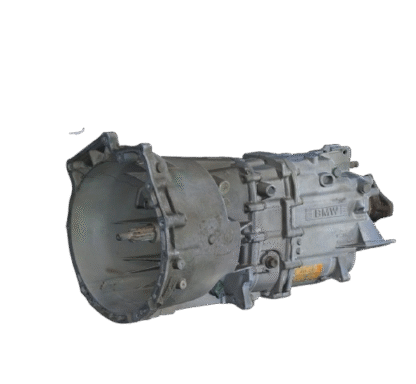

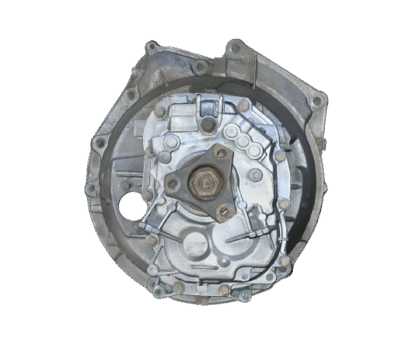

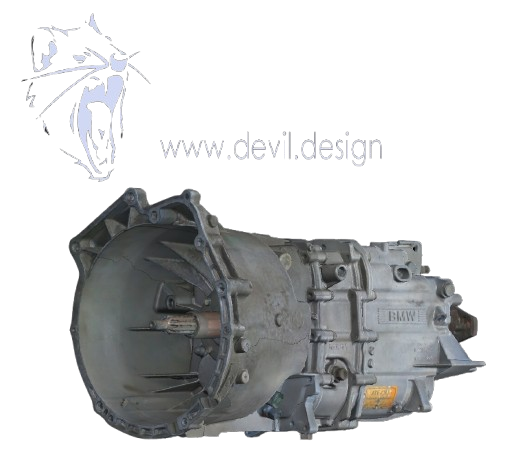

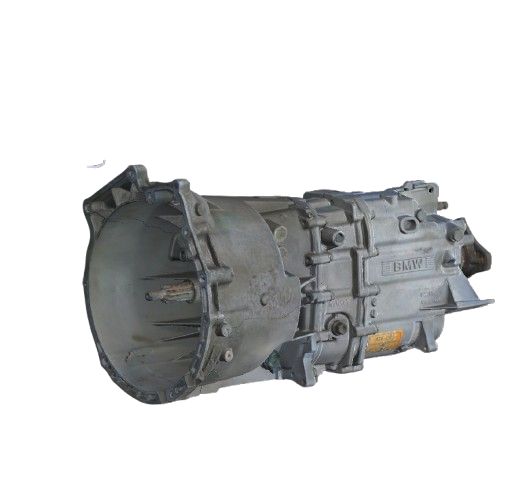

This is a 3D scan of the Getrag 420G 6-speed manual transmission used in the 1996–1999 BMW E36 M3. The OEM part number for this transmission is #23001434507.
The scan was captured from a complete transmission and provides a high level of surface detail suitable for use in CAD reference, digital mock-ups, reverse engineering, and component clearance checking. The file is supplied in STL format, making it compatible with most 3D software packages.
Please note that this 3D scan is intended for reference and design purposes only, and should be used alongside genuine OEM components when validating fitment or developing parts.
Due to the large file size, the model is compressed for download. If a higher-resolution version is required, please contact us after purchase to arrange access.
Potential Uses:
-
Prototyping and product development
-
Reverse engineering or component analysis
-
Fitment and clearance testing in CAD
-
Custom mount or adapter design
-
Educational or demonstration purposes
